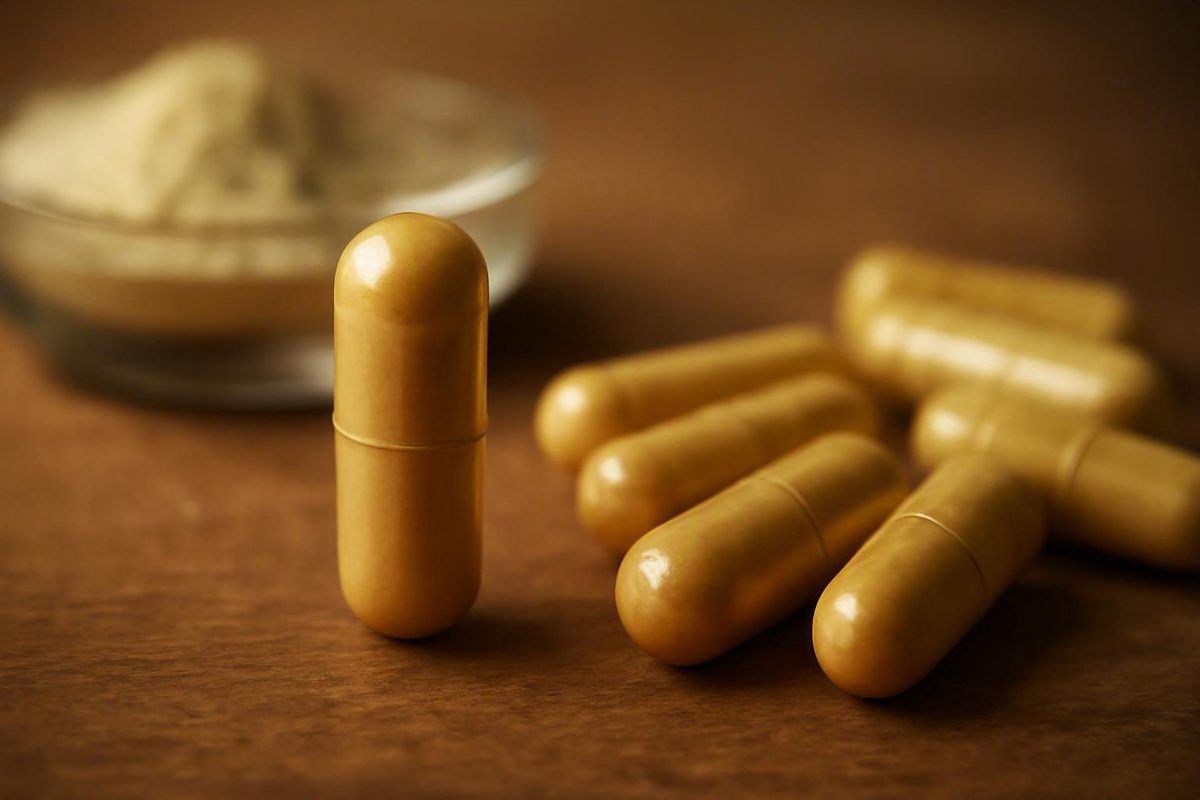

How Much Fits in a Size 0 Capsule—and How to Choose the Right Shell

A standard size 0 capsule has about 0.68 mL of supplier-reported internal volume. That volume—not a fixed milligram rating—is the useful starting point for deciding what will fit.

The familiar description “500 mg capsule” is only shorthand. A light, aerated powder may fill the shell before reaching 500 mg, while a denser or more compacted blend may exceed it. A defensible estimate requires the formulation’s bulk density, followed by a pilot fill using the same technique intended for routine production.

Four quantities must remain separate:

1. Empty-shell weight: the capsule itself, with nothing inside.
2. Internal volume: the physical space available for the formulation.
3. Total filled-blend weight: all material placed inside, including active ingredients and excipients.
4. Active-ingredient dose: the amount of the ingredient or ingredients intended to produce the stated effect.

Confusing these measurements can lead to an unsuitable shell choice, an incorrect serving count, or an inaccurate interpretation of the finished capsule.

Size 0 capsule specifications at a glance

Common commercial specifications place a standard size 0 capsule at approximately 0.68 mL in volume, 21.4–21.7 mm in closed length, and 7.64 mm at the cap’s maximum external diameter. These are approximate supplier-reported values rather than an independently established universal specification, so published tables can differ slightly by manufacturer tolerance and measurement convention. The LFA capsule specification chart lists 0.68 mL, 21.6 mm closed length, and a 7.64 mm cap diameter.

Size 0 specification box

Property	Approximate specification
Internal volume	0.68 mL
Closed or locked length	21.4–21.7 mm
Maximum cap diameter	7.64 mm
Empty-shell weight	Commonly about 95–105 mg
Powder capacity	Density-dependent; not a fixed 500 mg

Capsule numbering runs in the opposite direction from physical size. Size 000 is larger than 00, size 00 is larger than 0, and sizes 1 through 5 are progressively smaller. Moving from size 0 to size 1 therefore means choosing less internal space, not more.

The closed length should not be confused with the separate lengths of the body and cap. A two-piece hard capsule has a longer body and a shorter cap that overlap when locked. Adding the individual component lengths counts that overlap twice and produces a measurement substantially longer than the finished capsule. Use the published closed or locked length when assessing packaging, machinery clearance, or personal swallowing preference.

Empty-shell weight varies by product and material. Commercial tables commonly place size 0 shells around 95–105 mg. One supplier chart lists average weights of approximately 99 mg for gelatin and 105 mg for vegetarian shells, each with a stated tolerance of ±6 mg; another commercial table lists approximately 95 mg. The Capsuline size chart provides the 99 mg and 105 mg figures with the dimensional specifications.

Shell weight is not capacity. If an empty shell weighs 100 mg and the finished capsule weighs 600 mg, the approximate net fill is 500 mg.

That is why a useful specification box describes capacity as density-dependent. Internal volume is comparatively stable within a particular product specification. The mass placed into that volume changes with the formulation and filling method.

How many milligrams fit in a size 0 capsule?

A size 0 capsule does not inherently hold 500 mg, 600 mg, or 800 mg. Any of those amounts may be plausible for a particular formulation, but none is universally correct.

Approximately 500 mg is common retail shorthand because some powders fall into a density range where that estimate is serviceable. It is not a guaranteed dose, standard capacity, or physical maximum.

For preliminary planning, use:

Estimated fill weight (mg) = capsule volume (mL) × bulk density (g/mL) × 1,000

For a nominal size 0 volume of 0.68 mL:

Estimated fill weight (mg) = 0.68 × bulk density × 1,000

Supplier sizing tables give the following theoretical results:

Formulation bulk density	Calculation	Estimated fill weight
0.60 g/mL	0.68 × 0.60 × 1,000	408 mg
0.80 g/mL	0.68 × 0.80 × 1,000	544 mg
1.00 g/mL	0.68 × 1.00 × 1,000	680 mg
1.20 g/mL	0.68 × 1.20 × 1,000	816 mg

These are theoretical planning values, not promises about production performance. The Capsule Connection sizing table reports the same density-based capacities and notes that powder properties and tamping affect actual results.

Worked example: Suppose a formulation has a relevant bulk density of 0.70 g/mL.

0.68 × 0.70 × 1,000 = 476 mg

The theoretical size 0 fill is therefore approximately 476 mg. A commercial planning table may round a comparable result to 475 mg, but that one-milligram difference is immaterial beside normal variation in powder behavior and filling.

The calculation can also be reversed. If the target is a 500 mg total blend:

500 mg ÷ 1,000 = 0.50 g

0.50 g ÷ 0.68 mL = approximately 0.735 g/mL

A 500 mg blend would therefore need a theoretical bulk density of about 0.74 g/mL to occupy 0.68 mL. That calculation assumes ideal use of the available volume. Poor flow, bridging, retained air, powder losses, and inconsistent filling can prevent the target from fitting reliably even when the arithmetic appears favorable.

Seller ranges illustrate why a single milligram rating is unreliable. NOW describes its size 0 gelatin capsule as holding 400–600 mg of most vitamin or mineral powders, explicitly qualifying the estimate by powder type. That product-specific range appears on the NOW size 0 product page.

A different retailer gives a seller-reported range of 400–800 mg for one size 0 gelatin product. That wider range may reflect the materials the seller expects customers to use, but it cannot be generalized to every formulation; the figure appears on the Medical and Lab Supplies size 0 listing.

Several properties can move practical capacity away from the simple volume-times-density estimate:

• Particle size: Fine and coarse particles may occupy voids differently.
• Particle shape: Irregular, fibrous, spherical, or flaky particles pack differently.
• Moisture: Moisture can change clumping, flow, and apparent density.
• Powder flow: Poorly flowing material may bridge over an opening or leave uneven voids.
• Retained air: Aerated powder occupies more volume until it settles.
• Settling: Tapping or vibration may allow additional material to fit.
• Packing pressure: Pressing powder into the body can increase fill weight.
• Tamping: Repeated tamping may create room for more powder, although inconsistent force can increase capsule-to-capsule variation.
• Blend uniformity: Components with different particle sizes or densities may separate during handling.

“Bulk density” also needs a method attached to it. Loose bulk density describes powder transferred with minimal consolidation. Tapped bulk density describes material after controlled tapping or settling. If the intended process uses repeatable tamping, loose density may underestimate it.

The most relevant planning value is therefore the density produced by a method resembling the intended filling process. Even then, the calculation remains a forecast: the same shell may hold substantially less of an aerated herbal powder than of a denser mineral-based blend.

Capacity is not the same as dose

Fill weight is the net weight of everything placed inside the shell. It may consist of one active ingredient, several active ingredients, excipients, or a documented blend of all three.

A capsule with a 500 mg net fill does not automatically provide 500 mg of an active ingredient. If a documented blend is 40% active ingredient by weight, for example:

500 mg total blend × 0.40 = 200 mg active ingredient

That is a mathematical illustration, not a suggested formulation. The actual percentage must come from the complete formulation and account for every component. Capsule size alone cannot reveal the active dose.

Choosing a shell only by a labeled milligram target is therefore unreliable. Before deciding that “500 mg belongs in size 0,” establish:

• Whether 500 mg means active ingredient or total blend
• The complete composition of the blend
• The blend’s relevant bulk density
• The volume needed for the intended total fill
• The practical fill achieved with the chosen process

Serving size follows from those answers. If one serving occupies more than 0.68 mL, the available options may include multiple size 0 capsules, a larger size 00 shell, an elongated shell, or reformulation by someone qualified to assess the formulation. A larger capsule may reduce the number required per serving, while a smaller capsule may increase it. Neither choice guarantees that the capsule will be comfortable for a particular person to swallow.

Do not add an arbitrary household powder solely to make a capsule look full. Empty space does not establish that a dose is defective. Adding another ingredient changes the total fill and active concentration, and its suitability, allergen status, interactions, flow behavior, and effect on blend uniformity require separate consideration.

Medication boundary

Do not crush, open, transfer, or repackage a prescription or over-the-counter medicine merely because its contents would physically fit in a size 0 shell. A capsule-capacity chart cannot establish that altering a medicine is safe. Ask a pharmacist or prescriber before changing how any medicine is prepared or taken.

Low-dose ingredients present a separate challenge. Physical fit does not show that a blend is uniform or that each capsule contains the intended fraction.

How to measure the actual fill weight of your powder

A density calculation is a useful first estimate. A pilot fill is the practical confirmation.

The objective is not to produce the heaviest possible capsule. It is to determine the average fill achieved with a defined, repeatable method and to examine whether the process produces acceptable consistency.

A straightforward pooled weigh-back procedure is:

1. Select 10 empty shells from the product you intend to use.
2. Weigh all 10 empty shells together and record the result.
3. Fill the shells using one consistent technique.
4. Close them in the same manner.
5. Weigh the 10 filled capsules together.
6. Subtract the empty-shell batch weight from the filled batch weight.
7. Divide the net powder weight by 10.

In formula form:

Average net fill per capsule = (filled batch weight − empty-shell batch weight) ÷ number of capsules

For example, if 10 empty capsules weigh 1.00 g and the 10 finished capsules weigh 5.76 g:

5.76 g − 1.00 g = 4.76 g of total powder

4.76 g ÷ 10 = 0.476 g, or 476 mg per capsule

A comparable multi-capsule weigh-back procedure is described in this capsule-filling guide. The calculation estimates the trial’s average net fill; it does not prove that every capsule contains exactly that amount.

Pooled weighing reduces the influence of one unusually light or heavy result, but it does not reveal individual net-fill variation by itself. Weighing finished capsules individually shows gross finished-weight spread, which includes natural variation in empty-shell weight.

To calculate reliable individual net fills, label and weigh each empty shell separately before filling, then weigh the corresponding closed capsule afterward:

Individual net fill = filled weight of that capsule − its own empty-shell weight

If individual empty-shell taring is impractical, do not treat gross finished-weight spread as equivalent to net-fill spread. A separately justified method would be needed to account for shell-weight variation.

Record the filling method in enough detail to repeat it. “Filled size 0 capsules” is not sufficient. Note whether the powder was:

• Scooped loosely into the body
• Leveled without pressure
• Settled by tapping the tray
• Tamped once or several times
• Refilled after each tamp
• Handled after blending in a way that could promote separation

Changing any of these steps may change the average fill. A test performed with vigorous tamping does not necessarily predict a later batch filled loosely by hand.

Repeat the pilot with a fresh set of shells. If the average changes materially, or paired individual net fills show a broad spread, investigate clumping, flow, powder separation, operator technique, and equipment setup. Home or small-scale filling should not be assumed to provide pharmaceutical precision merely because an average can be calculated.

The scale must also have resolution appropriate to the quantity being assessed. A scale displaying 0.01 g resolves increments of 10 mg. That may be useful for a pooled capacity estimate, but it is not automatically suitable for a low-dose ingredient, an individual-capsule check, or a medicine. Resolution, accuracy, calibration, minimum reliable load, and weighing technique all matter.

For commercial or larger-scale planning, complete a pilot before finalizing:

• Capsules per serving
• Label statements
• Bottle count
• Container size
• Packaging-line setup
• Ingredient purchasing quantities
• Expected process losses

A simple worksheet keeps the estimate auditable:

Worksheet field	Record
Powder or blend identity	Name and batch
Shell supplier	Manufacturer or seller
Shell material	Gelatin, HPMC, or other documented material
Capsule format	Standard size 0 or another format
Filling method	Loose, settled, tamped, manual device, or machine
Number of shells	Preferably 10 or more for an initial pooled check
Empty batch weight	Total weight before filling
Filled batch weight	Total weight after filling
Net powder weight	Filled batch minus empty batch
Average net fill	Net powder weight divided by capsule count
Individual net fills	Paired empty and filled weights, where needed
Process notes	Clumping, bridging, leakage, incomplete locking, or waste

The result belongs to that powder, shell, and filling method. It should not be treated as the capacity of every size 0 capsule under every filling condition.

Size 0 vs. size 00, size 1, and elongated 0E

Size 0 sits between the larger size 00 and the smaller size 1. Because capsule numbering is inverse:

• Choose size 00 when more internal volume is required.
• Choose size 0 when its volume accommodates the formulation and serving plan.
• Choose size 1 when less volume is needed and any increase in capsule count remains acceptable.
• Consider size 0E when standard size 0 is slightly too small and an elongated format is available.

Commercial comparison tables sometimes assign rough capacities of 735 mg to size 00, 500 mg to size 0, and 400 mg to size 1. These are directional planning estimates rather than fixed mass specifications because the formulation’s density still controls the weight that fits. Those approximate comparisons appear in the SED Pharma capsule guide.

Another instructional guide describes size 1 as holding about 20% less than size 0. That comparison is likewise approximate and does not override the need to calculate volume from the actual blend’s density. The qualified size comparison appears in wikiHow’s capsule-filling guide.

The practical trade-off is serving count. A larger shell may reduce the number of capsules needed per serving, while a smaller shell may increase it. Swallowing comfort is individual: although commercial guides often position size 0 as a middle-ground option, that does not mean it is easy or appropriate for everyone to swallow. Before placing a bulk order, consider the intended shell’s actual dimensions and personal suitability rather than relying on a marketing phrase such as “easy to swallow.”

Elongated size 0E is a distinct supplier-listed format. Capsuline lists approximately 0.78 mL for size 0E, compared with 0.68 mL for standard size 0. Across formulation densities of 0.6–1.2 g/mL, the corresponding theoretical 0E range is approximately 468–936 mg. These remain density-based estimates, not a universal capacity range.

“Size 0” in a product title does not establish 0E compatibility. Confirm the complete shell designation with both the shell supplier and the equipment manufacturer.

A practical selection sequence is:

1. Calculate the required formulation volume. Divide the target blend weight in grams by the relevant bulk density in g/mL.
2. Compare the result with available shell volume. Do not assume perfect theoretical packing.
3. Determine capsules per serving. A shell that fits the formula may still produce an undesirable serving count.
4. Consider swallowing preference. Do not infer personal suitability from a generic commercial description.
5. Run a pilot fill. Confirm average fill and, where necessary, individual net-fill variation.
6. Verify availability. Confirm that the chosen material, color, count, and format can be sourced.
7. Confirm equipment compatibility. Match standard 0, 0E, 00, or size 1 precisely.

If a formula almost fits standard size 0, size 0E may provide the additional volume required. If substantially more space is needed, size 00 or multiple capsules may be more practical. Any reformulation or increased compaction should be evaluated for its effects on flow, uniformity, and process consistency.

Gelatin, HPMC, and pullulan shell materials

Size 0 describes a dimensional category, not a material. Standard size 0 shells are commercially available in gelatin and plant-derived materials, particularly hydroxypropyl methylcellulose, or HPMC. Pullulan is also identified in capsule-industry guides as a plant-derived shell material, although the available evidence does not support a detailed size 0 performance comparison.

Gelatin is animal-derived. Commercial capsule gelatin may come from bovine or porcine sources, so buyers with dietary, religious, ethical, or allergy-related requirements should verify the source for the exact product. It is not safe to assume that every gelatin capsule is bovine.

For a documented product example, NOW identifies its clear size 0 shells as bovine-sourced and lists the ingredients as bovine gelatin and water. That statement applies to the specific NOW product, not to gelatin capsules generally.

HPMC is a plant-derived capsule material commonly marketed as vegetarian. Pullulan is also described as plant-derived in the supplied capsule guides. However, a vegetarian or vegan badge does not by itself establish the complete composition, processing aids, colorants, shared-facility conditions, or independent certification. Review the ingredient statement and supporting documentation for the exact item.

This matters because retail listings can be inconsistent. One captured product URL describes vegan capsules while its displayed title and image descriptions identify gelatin capsules. When a URL, category label, product title, and ingredient statement disagree, do not guess. Ask the seller for a current specification or choose a better-documented product.

Supplier-reported shell weights may also differ by material. The cited specification chart lists average size 0 shell weights of approximately 99 mg for gelatin and 105 mg for vegetarian shells, each with a ±6 mg tolerance. That difference does not establish that one material has more or less usable internal space. Capacity must be taken from the product specification, not inferred from empty-shell mass.

The available evidence does not justify claiming that gelatin, HPMC, and pullulan have identical dissolution, humidity response, shelf life, or storage requirements. A material category alone also cannot establish suitability for a particular formulation. Compare product-specific documentation, especially when the contents are sensitive or the filled capsules will be stored for an extended period.

Use this material checklist:

• What is the complete shell ingredient statement?
• If it is gelatin, is the animal source identified?
• If it is HPMC or pullulan, does the documentation confirm that material?
• Are water, colorants, opacifiers, flavors, and processing aids disclosed?
• Are dietary or religious certifications current and tied to the exact item?
• Does the supplier provide product-specific storage instructions?
• Does the intended equipment support that shell’s size and format?

Material selection should be documentary, not visual. A clear capsule may be gelatin or plant-derived, while a colored capsule may use either material depending on the product.

Filling equipment, shell formats, and purchasing choices

Capsule trays and filling machines are generally size-specific. A device intended for size 00 or size 1 should not be expected to align, fill, and lock standard size 0 shells correctly. The equipment description should explicitly state compatibility with standard size 0, and elongated 0E compatibility should be confirmed separately.

At a high level, dry powder may be filled by:

• Individual hand filling: Each capsule body is filled separately.
• A manual batch device: Multiple bodies are held in a size-matched tray while powder is spread and, where intended, tamped.
• Larger-scale machinery: Semi-automatic or automatic equipment processes larger quantities with dedicated tooling and controls.

These methods should not be assumed to provide equal speed, consistency, or precision. Technique affects fill weight even when a batch tray is used, and machinery must be configured for the selected shell and formulation.

The retail evidence primarily supports ordinary size 0 shells for dry powders and herbs. Do not assume that a conventional two-piece shell is suitable for oils or other liquids.

Retail size 0 capsules are sold in formats including:

• Clear or opaque
• Single-color or two-color
• Unflavored or flavored
• Joined or pre-separated
• Small bags or bulk cases
• Gelatin or plant-derived materials

A specialty retailer’s size 0 product collection illustrates clear, colored, separated, and flavored options. Captured listings across the evidence pack range from approximately 100-count bags to 100,000-count cases, although current selection and availability must be checked at the time of purchase.

Pre-separated caps and bodies may remove a setup step for some filling devices. Separation does not inherently change volume or density-dependent capacity unless the separated product has a different specification.

Treat color and flavor as ingredients rather than decoration alone. Review colorants, opacifiers, flavoring components, and dietary implications.

Avoid choosing solely by headline price. A practical comparison checklist covers:

• Exact size and whether it is standard or elongated
• Shell material
• Animal source, where applicable
• Complete ingredient disclosure
• Colorants, flavors, and processing aids
• Compatibility with the intended tray or machine
• Package count
• Packaging integrity and tamper evidence
• Supplier storage instructions
• Documentation supporting material or quality claims
• Delivered cost per usable capsule
• Likely waste during setup and filling

Price, ratings, promotions, stock, shipping terms, and claimed purchase counts are time-sensitive marketplace details. For a large order, calculate delivered unit cost only after confirming that the shell, documentation, and equipment meet the actual requirement.

Quality claims, storage, and safety checks

Keep physical specifications separate from marketing and compliance claims. Volume, dimensions, and empty-shell weight can be compared with a product specification sheet. Claims such as “pharmaceutical-grade,” “GMP,” or “allergen-free” require different documentation and cannot be established from capsule dimensions.

Recurring seller claims include:

• Kosher or Halal certification
• Non-GMO status
• Allergen controls
• Good Manufacturing Practice status
• United States or European pharmacopeial compliance
• BSE or TSE status
• “Pharmaceutical-grade” quality
• Facility approval or registration claims

Treat these as seller assertions unless supported by current, product-relevant documents. For example, a retailer listing for colored gelatin shells makes certification, manufacturing, and pharmacopeial claims, but the listing itself is not a substitute for the underlying certificates.

Where a claim matters, request documentation tied to the exact product, facility, or batch. Check the issuing organization, dates, scope, product identity, and whether the document covers the shell itself or only a broader facility.

For dietary restrictions, verify more than the main shell polymer. Review:

• Complete shell ingredients
• Gelatin animal source
• Colorants and opacifiers
• Flavor ingredients
• Processing aids
• Shared-facility disclosures
• Certification scope
• Differences among product variants

Keep empty and filled capsules sealed, cool, dry, and protected from light, following the specific supplier’s instructions. Do not apply a universal temperature, humidity range, or after-opening shelf life without product-specific documentation.

The contents may require more protection than the shell provides. Moisture- or light-sensitive formulations may still need suitable secondary packaging. A colored shell alone does not prove adequate light protection, just as a resealable bag does not establish long-term moisture control after repeated opening.

Safety check

• Swallowing difficulty: Suitability is individual. Seek medical guidance if capsules are difficult to swallow or repeatedly cause discomfort.
• Children: Do not infer suitability from capsule size alone. Ask an appropriate healthcare professional about the ingredient, amount, and delivery form.
• Animals: Discuss the capsule and formulation with a veterinarian rather than relying on a general human sizing chart.
• Medicines: Ask a pharmacist or prescriber before opening, crushing, transferring, or repackaging any medicine.
• Low-dose ingredients: Physical fit does not establish blend uniformity or dosing accuracy.
• Liquids and oils: Proceed only with product-specific compatibility, sealing, and stability documentation or qualified technical guidance.

The practical conclusion is straightforward: size 0 is best understood as a capsule with approximately 0.68 mL of supplier-reported volume, not as a guaranteed 500 mg container. Estimate capacity from the actual blend’s bulk density, confirm it through a consistent multi-capsule pilot, and keep total blend weight separate from active dose. Then consider shell material, serving count, swallowing preference, equipment compatibility, storage requirements, and documentary support for seller claims.

Bulk MSM describes itself as an educational site that does not sell supplements. Its content is general information rather than medical advice, and its medical-information disclaimer advises readers to consult a doctor before starting a supplement.

Frequently asked questions

How much powder does a size 0 capsule hold?

A standard size 0 capsule has approximately 0.68 mL of supplier-reported volume. The theoretical powder weight is about 408 mg at 0.6 g/mL, 544 mg at 0.8 g/mL, 680 mg at 1.0 g/mL, and 816 mg at 1.2 g/mL. These density-based figures are reported in the Capsule Connection size table.

Use:

0.68 mL × bulk density in g/mL × 1,000 = estimated milligrams

Approximately 500 mg is useful shorthand for some powders, not a guaranteed capacity or dose. Confirm the estimate with a consistent pilot fill.

What are the dimensions of a size 0 capsule?

Commercial specification tables commonly list a standard size 0 capsule at approximately 21.4–21.7 mm in closed length, with a maximum cap diameter near 7.64 mm. The LFA specification chart lists 21.6 mm and 7.64 mm.

Do not add the separate cap and body lengths because those components overlap when the capsule is closed. Dimensions and tolerances can vary slightly by supplier.

Is size 00 larger than size 0?

Yes. Capsule numbering is inverse: size 000 is larger than 00, size 00 is larger than 0, and size 1 is smaller than 0.

Size 00 therefore provides more internal space than size 0, although the actual weight of powder it holds still depends on formulation density and filling method.

Are size 0 capsules available in vegetarian or plant-derived materials?

Yes. Size 0 is a dimensional designation rather than a material. Commercial products are available in animal-derived gelatin and plant-derived materials such as HPMC; pullulan is also identified as a plant-derived capsule material.

Verify the exact ingredient statement, material documentation, and any relevant certification rather than relying only on a vegetarian or vegan badge.

Do I need a size 0 capsule-filling machine?

Not necessarily. Capsules can be filled individually by hand, while a manual batch device may be more convenient for larger quantities.

Any tray or machine used must explicitly support standard size 0. Equipment intended for size 00, size 1, or elongated 0E should not be assumed to work with standard size 0 shells.
